Product Description

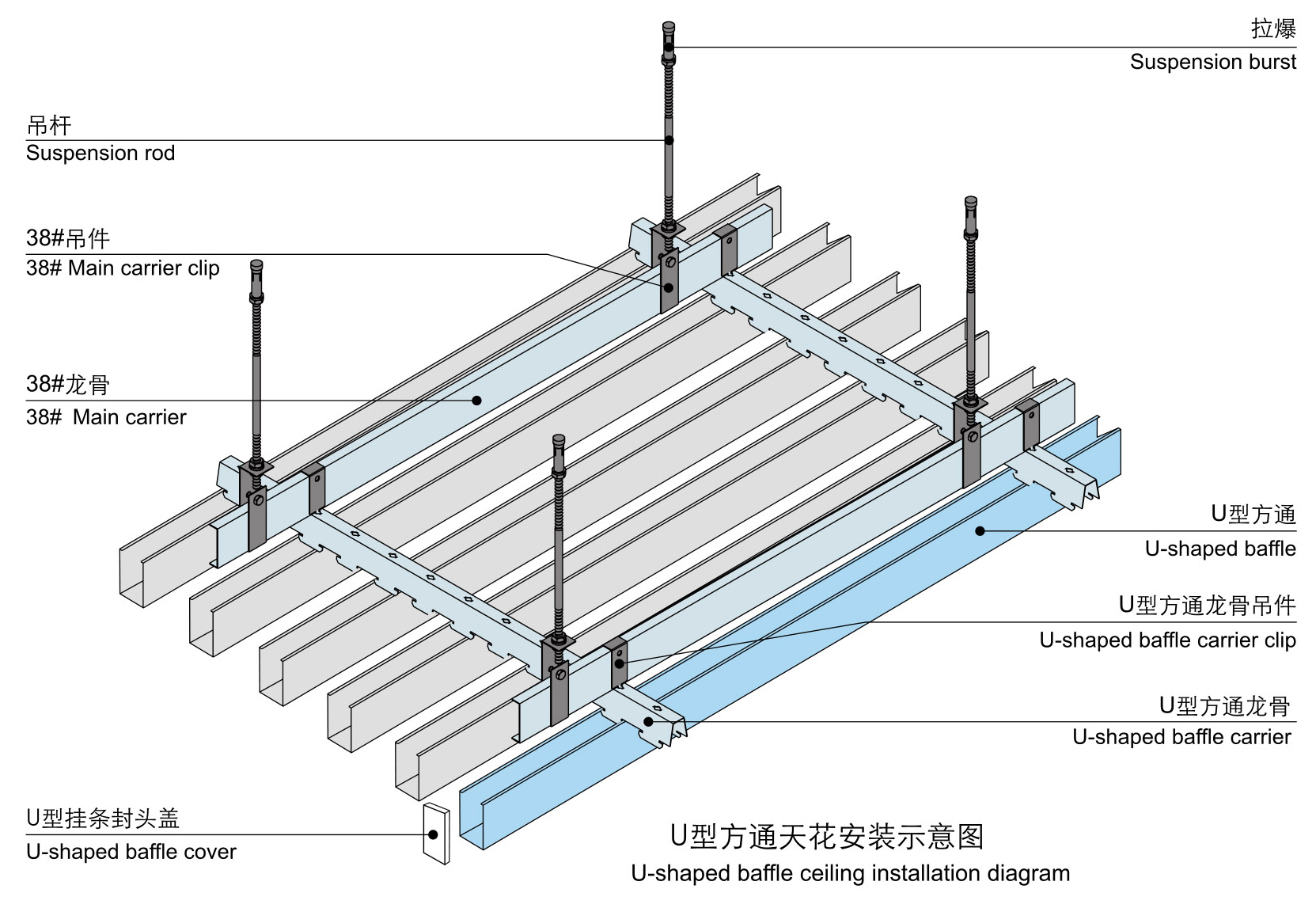

The utility model relates to an ornamental ceiling, which can adjust the visual height of a house, conceal all pipes and other equipment in Loudi, and also introduce sunlight or light. With an open vision, ventilation, ventilation, its lines bright and neat, clear hierarchy, reflecting a concise and clear modern style, easy installation and disassembly, has become a popular decoration market this year's main products.
Material: 1001,3003 high-grade aluminium alloy; galvanized steel;
Surface coating treatment: PVDF (fluorocarbon); PE (polyester);
Processing technology: continuous roll forming
Specification length: 1000mm-6000mm (surface standard length can reach 6000mm, other lengths can be customized according to demand)

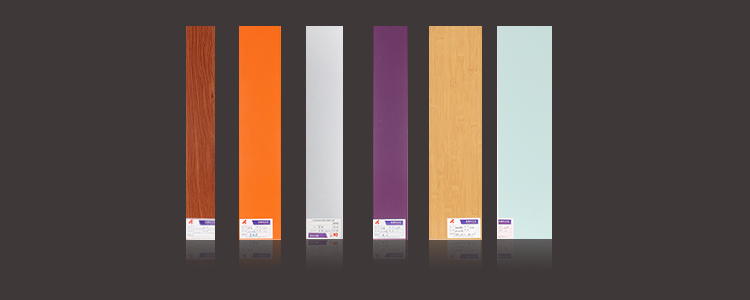

Colour: Refer to the color card number of Lexingdeli standard (if you have special requirements, please provide PANTONE (Pantone) international color card number customized according to demand)
U-shaped Fangtong ceiling thickness: (Note can customize different thickness)
Thickness of 30-40 high U-shaped Fangtong ceiling products at 20, 25 and 30 bottoms: 0.50mm-0.90mm
20, 25, 30 bottom 50-70 high U-shaped Fangtong smallpox finished product thickness: 0.60 mm-0.90 mm
20, 25, 30 bottom 80-120 high U-shaped Fangtong smallpox finished product thickness: 0.70 mm-0.90 mm
Thickness of 130-200 high U-shaped Fangtong ceiling products at the bottom of 20, 25 and 30: 0.80mm-1.20mm
40, 50 bottom 30-40 high U-shaped Fangtong smallpox finished product thickness: 0.60 mm-0.90 mm
40, 50 bottom 50-70 high U-shaped Fangtong smallpox finished product thickness: 0.70 mm-0.90 mm
40, 50 bottom 80-120 high U-shaped Fangtong smallpox finished product thickness: 0.75 mm-0.90 mm
40, 50 bottom 130-200 high U-shaped Fangtong smallpox finished product thickness: 0.90 mm-1.20 mm
60 bottom 30-70 high U-shaped Fangtong smallpox finished product thickness: 0.70mm-0.90mm
60 bottom 80-120 high U-shaped Fangtong smallpox finished product thickness: 0.80 mm-1.00 mm
60 bottom 130-200 high U-shaped Fangtong smallpox finished product thickness: 0.90 mm-1.20 mm
70, 80 bottom 30-90 high U-shaped Fangtong smallpox finished product thickness: 0.80 mm-1.00 mm
70, 80 bottom 100-200 high U-shaped Fangtong smallpox finished product thickness: 0.90 mm-1.20 mm
100-150 bottom 20-50 high U-shaped Fangtong smallpox finished product thickness: 0.90 mm-1.10 mm
